 Prises microphone \ Modulaires





Modulaires (RJ)



1 - VCC (8Volts - 10mA)

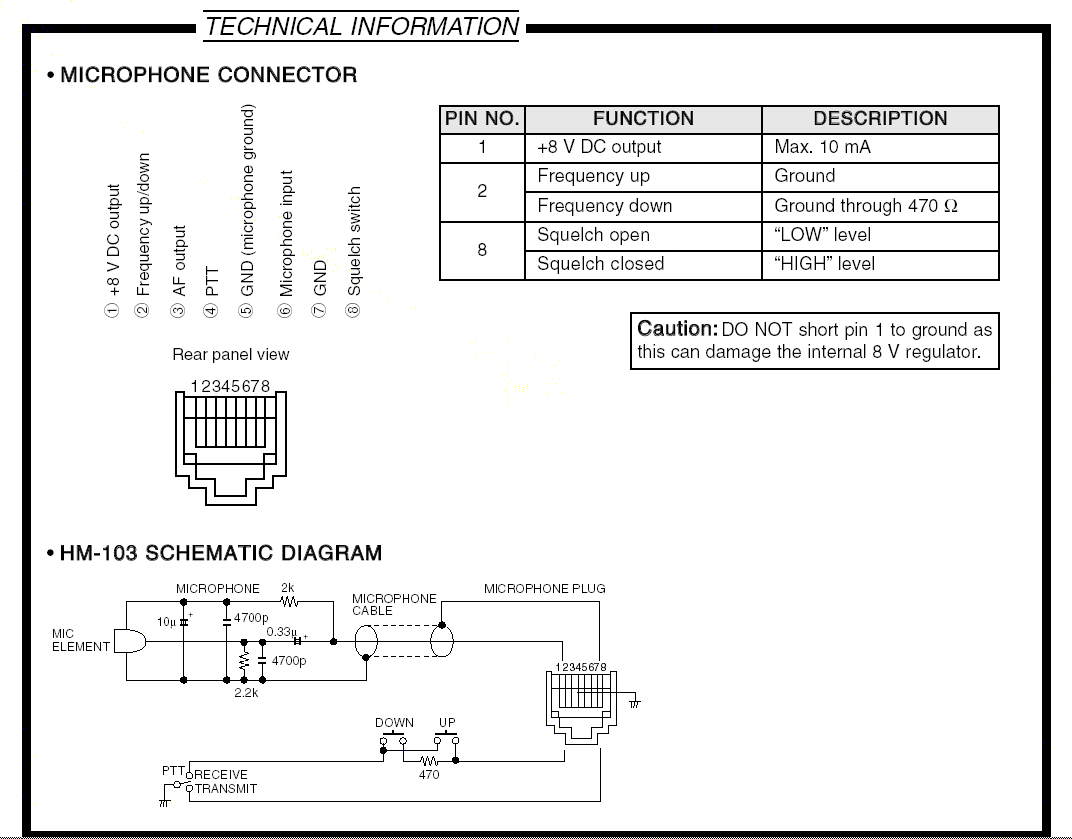

ICOM IC706

2 - UP / DWN
3 - RX
4 - TX
5 - GND (MIC)
6 - GND
7 - TX
8 -



1 - HP

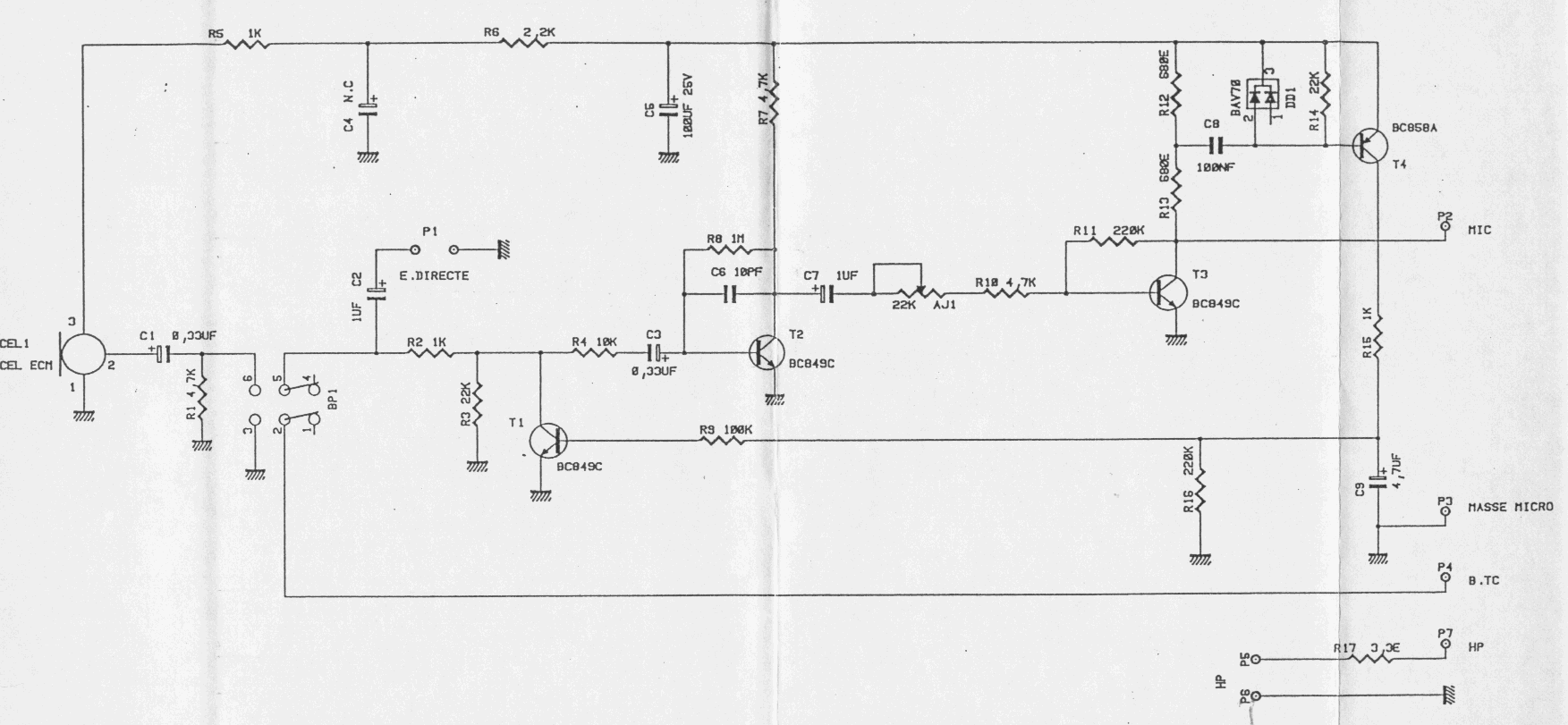

TALCO CSxxx

2 - MIC (275mV/+9V)
3 - GND
4 - TX
5 - NC
6 - NC



1 - DWN

YAESU FT817 / FT857 / FT897

2 - UP
3 - VCC (5V)
4 - GND (MIC)
5 - MIC
6 - PTT
7 - GND
8 - FST
